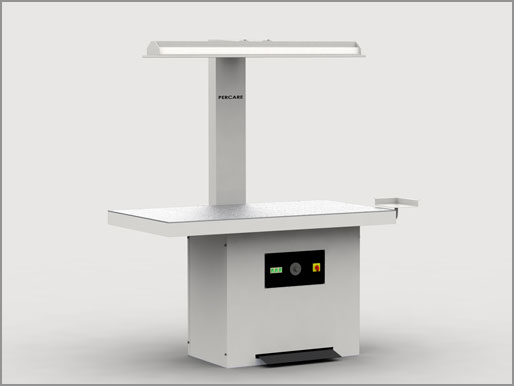

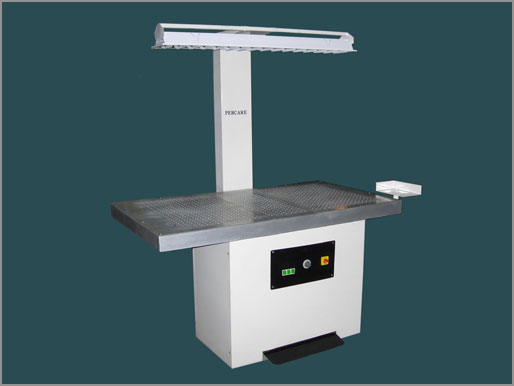

Hand operated steam presses with suction tables.

Back to Products

These tables are used to press all kinds of clothes with the help of hand operated Steam Press and Vacuum Blower fitted inside the table. Portable Hand Operated steam press relaxes the fabric with steam heat and moisture. The vacuum blower holds the fabric on table which assists the operator in pressing and time saving. The Vacuum blower also cools the fabric immediately after steaming which helps to retain that finished look. Perccare finishing Tables are designed keeping in mind the needs of operation for perfect pressing. We use Heavy Duty Aluminum sheets for bed to give durable and long lasting bed for life time. Our heavy duty model uses sturdy frame and Extra bed size with air duct to comply with industry standards.

Download
Brochure

Technical Specifications

Model PTH-53 PTL-43
Overall Dimensions (L x D) 1680 x 1000 mm 1016 x 965 mm
Bed Dimensions (L x D) 1500 x 810 mm 1016 x 965 mm
Bed Height 890 mm 890 mm
Overall Height 1880 mm 1050 mm
Blower Motor 0.55 KW Rotomotive/Crompton 0.55 KW
Blower RPM 2800 2800
Heater inside Bed 1Kw 1 Kw
Hand Press 700 Watts 700 Watts
Tube Set 80 Watts Philips with Reflector n.a
Default Color White (can be changed acc. to req.) White
Bed Sheet Material 3mm Aluminum 2mm Mild Steel
Exhaust Aluminum Blower with Duct Blower without Duct

Standard Features


  • 3mm Aluminium Sheet bed for longer machine life.
  • Powerful Blower to remove residual moisture fast and quick.
  • Longer duct to keep heat and moisture away from operator.
  • Sturdy Frame for years of reliable performance.
  • Wide range of Bucks available.
  • Operator Friendly design.
